Leadshine Servo Motor DCM50205-02D-1000&Driver DCS-810

Mã sản phẩm: Leadshine Servo
Xuất xứ: ...
Thương hiệu: ...
Đánh giá:
0/10
Lượt xem: 1 437
Trạng thái: Còn hàng

vui lòng liên hệ để biết giá tốt nhất
Liên hệ

DCM50205D-1000_p5

LeadshineDCmotor_catalog1

LeadshineDCmotor_catalog2

DCM50205D-1000_p6

DCS810_p1

        Main feature:

  • Basic (differential) DC servo drive DCS810characteristic■ Operating voltage range: + 18 ~ 80VDC; ■ Maximum continuous operating current. 10A; ■ can drive 24V / 36V / 48V / 60V, 20W ~ 400W differential DC servo motor; ■ may receive a single-ended / differential control signal; ■ Encoder differential wiring; ■ for high interference environments;
    DCS810 control command and encoder interface differential access, which is Lei Saike technology introduced a high-performance and high noise immunity of digital DC servo drives, not only has the full digital DC servo characteristics, especially suitable for the application harsh environment, severe external interference, less rack space, cabling complex situations.

    Matching motor:
    DCM50xxx-xxxD and DCM57xxx-xxxD differential motor

    Applications
    Widely used in printing, small sculpture, electronic processing, CNC machine tools, packaging equipment, textile printing and other industries. Users expect minimal vibration, low noise, high precision, high speed and high anti-jamming device used, the effect is a plus.



  • Port definition  motors and power input port

    Terminal No.

    symbol

    name

    1

    Motor +

    DC motor winding +

    2

    Motor –

    DC motor winding –

    3

    + VDC

    DC power input

    4

    GND

    Input Power ground



    RS232 communication port


    Terminal No.

    symbol

    name

    1

    NC

    No connection

    2

    + 5V

    Positive power supply terminal (for STU-DCS)

    3

    TxD

    RS232 transmission side

    4

    GND

    Power Ground

    5

    RxD

    RS232 receiving end

    6

    NC

    No connection


    The encoder signal input port

    Terminal No.

    symbol

    name

    1

    EB +

    Encoder B-phase positive input

    2

    EB-

    Encoder B-phase negative input

    3

    EA +

    Encoder A-phase positive input

    4

    EA-

    A negative phase encoder input

    5

    E + 5V

    Encoder supply

    6

    EGND

    Encoder supply ground

    Control signal port


    Terminal No.

    symbol

    name

    1

    PUL +

    Positive input pulse

    2

    PUL-

    Negative input pulse

    3

    DIR +

    Direction positive input

    4

    DIR-

    The direction of the negative input

    5

    EN +

    Enable the positive input

    6

    EN-

    Enable negative input

    7

    ERR

    Fault signal output

    8

    EGD

    Ground


    Typical wiring

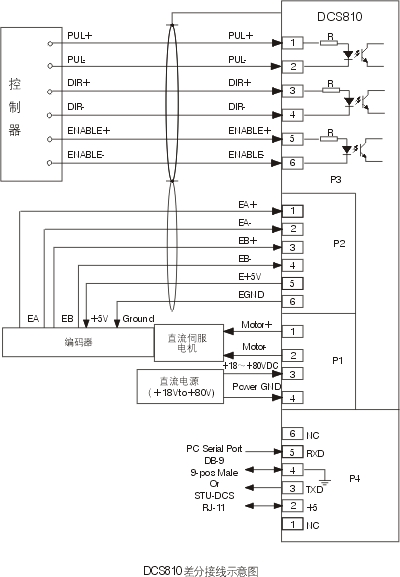

    DCS810 differential wiring diagram

    DCS810 single-ended wiring diagram

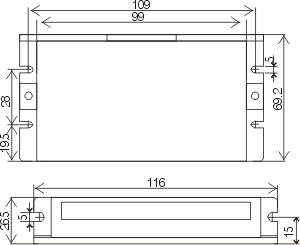

    Mounting dimensions
